Product Details

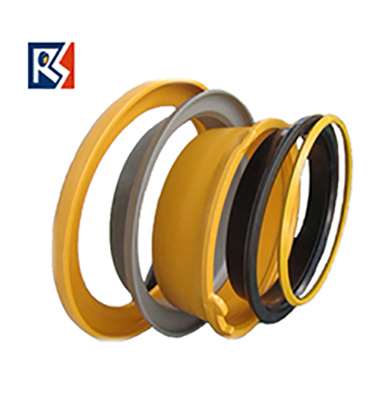

Description for Wheel Components

• 1. Wheel Side Ring(Flange)Material: Q355
  Specification: side ring 5.5F-16、6.00G-16、6.5-20、7.00T-20、7.50V-20、8.0-20、8.5-20、9.00V-20,diameter from 8 inches to 24 inches.

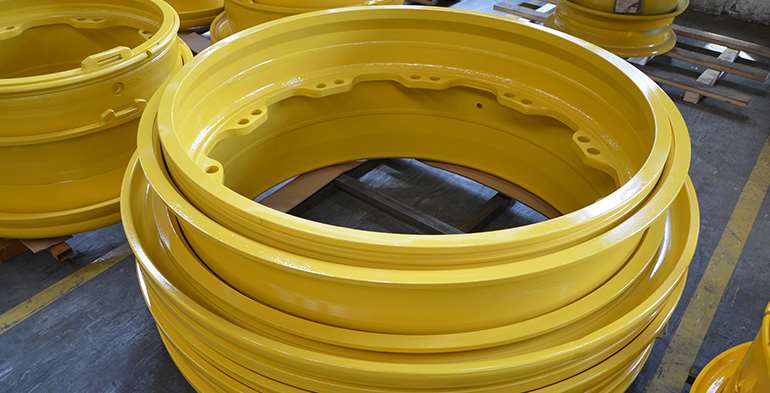

• 2. Back SectionHot pressed back section for off-the road rim, butt welded and CNC machined.
  Material: Q355
  Specification: 15-53 inches.
• 3. Wheel Rim FlangeHot rolled shaped welded parts for off the road wheel rims,with CNC machining to guarantee the size and air tightness.
  Material: Q355
  Specification: 20-63 inches
• 4. Wheel Rim Bead Seat BandsBead seat bands is a important wheel rim assembly part commonly used on construction wheels and rims, earthmover wheels, heavy equipment wheels, and mining wheels. 25", 29", 33", 35", 39", 45" , 51", 57" and 63" bead seat bands are most commonly needed.
  Bead seat bands are made from hot rolled shaped section for off the road wheel rims, butt welding and CNC machining to guarantee the size and air tightness.
  Material: Q355
  Specification: 20-63 inches
• 5. Wheel Rim Gutter SectionWheel rim gutter section (or locked groove ring), Made from hot rolled shaped section for off the road wheel rims,butt welding and fully CNC machining to guarantee the size and air tightness.
  Material: Q355
  Specification: 15-63 inches
• 6. Wheel Rim Locking RingHot rolled shaped welded parts for off the road engineering machinery wheel rims, mechanical property and elasticity ensured.
  Material: 50#, 50Mn
  Diameter: 15-63 inches
  Specifications: light duty type ring, medium duty type lock ring, heavy duty lock ring, special lock ring.
